Circuit OPEN Microswitch Wiring Instructions

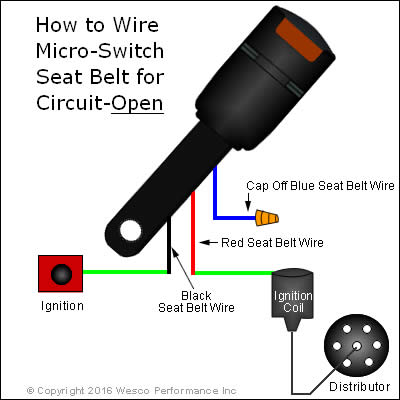

    Micro Switch Seat Belt Open Wiring Diagram


    Wire the seat belt as shown into the hot wire between the ignition switch (key) and the ignition coil/distributor. When the seat belt is disconnected, the motor will not be able to start or run.

    Do NOT wire to the starter circuit or the motor will continue to run after started if the seat belt is disconnected.
