UTV Off Road Seat Belt Roll Bar Mount Shoulder Harness Push Button Buckle

This item is Out Of Stock
UTV Off Road Seat Belt Roll Bar Mount Shoulder Harness Push Button Buckle
UTV Off Road Seat Belt Roll Bar Mount Shoulder Harness Push Button Buckle
Item #: 40013xx-prev-50521-15
$75.95
$85.95
YOU SAVE $10.00 (12%)

  • Info
This is a 2" wide Lap Belt with a push button latch and sewn in 2" wide individual Shoulder Harnesses (safety 4 pt. seat belt - 4 point). Perfect RZR Rhino seat belt. Ends are both bolt-in or wrap-around. The lap belt portion extends up to 73 inches and shoulder harness extends up to 62 inches total length. The lap belt has "pull up" tightening which is great for smaller / tight UTV compartments.
This 4 point harness is very popular for use in many types of UTV off road vehicles side x side, Rhino seat belts RZR harness as well as other all terrain vehicles. For Yamaha Rhino harnesses, the ends are easily bolted to the roll cage horizontal bar (if you have a roll cage) located just behind the top of the seat back in your side x side vehicle. These seat belts come with shoulder harness ends that can be used as either Individual Wrap Arounds or Bolt Ends. (The Bolt End hardware is included, but you can take the hardware off and use the ends as Wrap Around Ends - either option). You also have the option of choosing snap ends for the 2 shoulder harness ends from the drop-down menu.
Note: If you choose optional eye bolt kit, the threaded portion of the eye bolt is 1-3/4" long, so they are not long enough for 2" roll bars (Polaris RZR Razor usually have 2" roll bars).
It is recommended that for a Rhino seatbelt installation that you use the bolt ends, so that the shoulder harness can't slide side to side, unless you use racing style seats that have shoulder harness slots built in. What's That?.
For additional safety, we recommend choosing the Sternum Strap option. The Sternum Strap connects the 2 shoulder harnesses together, reducing the chance of either shoulder harness slipping off of the shoulder in a rollover accident. The Sternum Strap has a push button latch, so that you can easily detach and attach the shoulder straps. This allows latching in and out of the seat belt much easier.
Color Chart
What is a Sternum Strap? Click Here

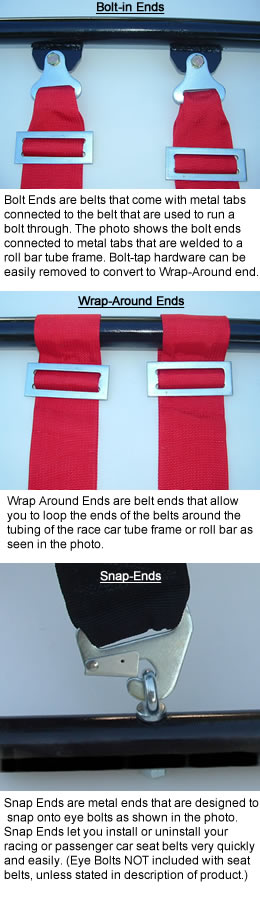

What are Wrap Around Ends? Click Here
What are Bolt Ends? Click Here
What are Snap Ends? Click Here

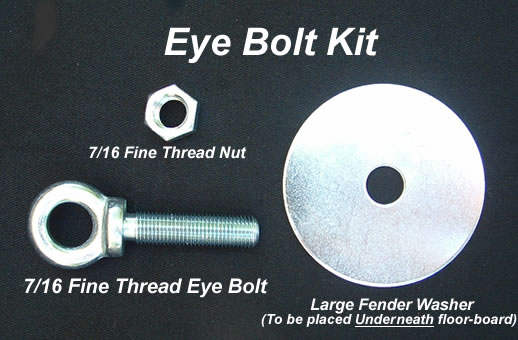

What are Eye Bolt Kits? Click HereEach Kit Includes 1 Eye Bolt, 1 Nut and 1 Washer. You Can Choose Eye Bolt Kits As-Needed in Drop-Down List Choices for an Additional Charge. Eye Bolt is 1¾" Long.
